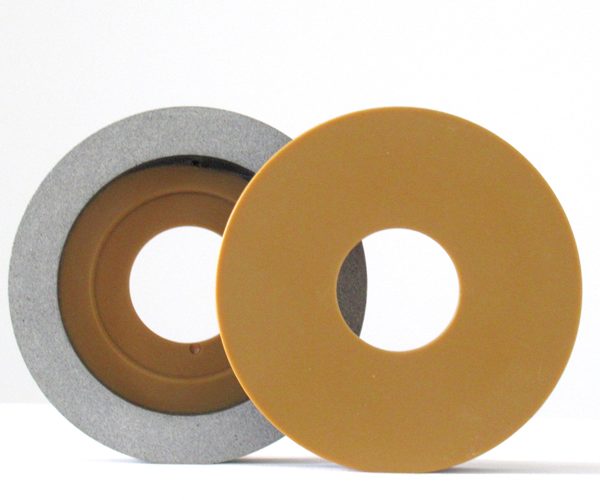

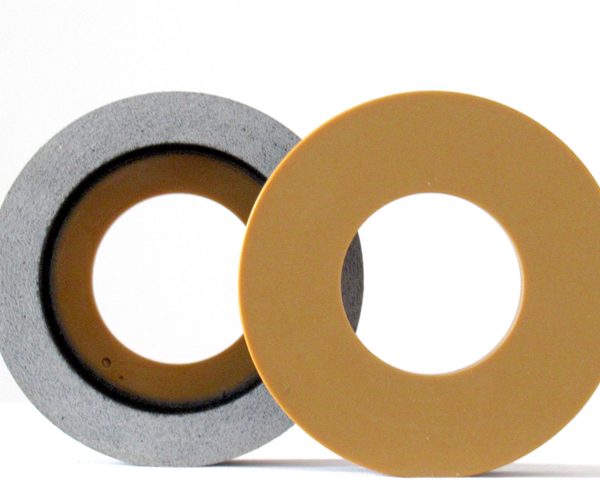

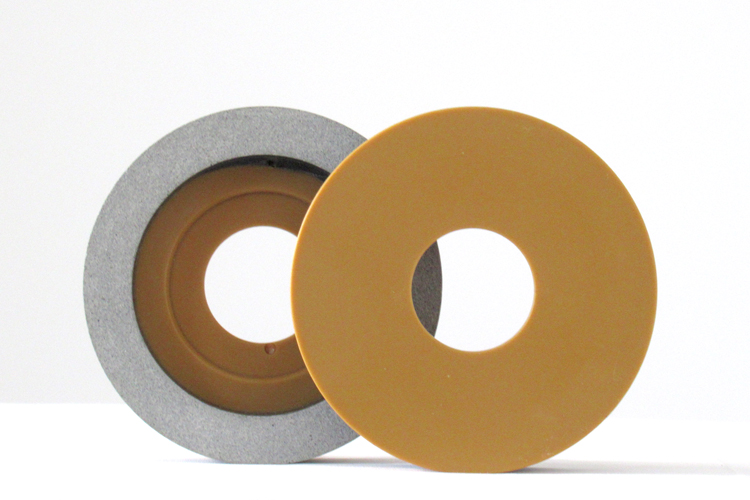

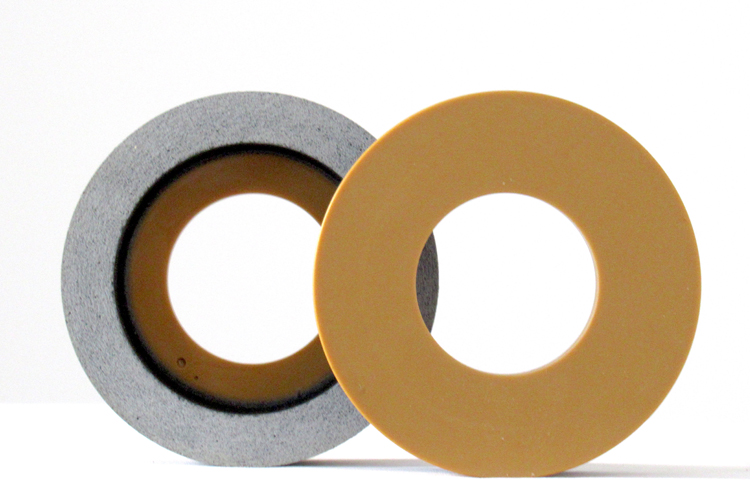

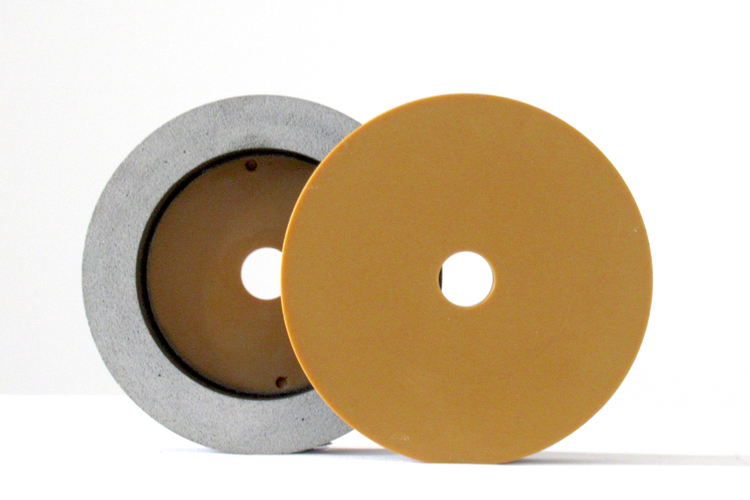

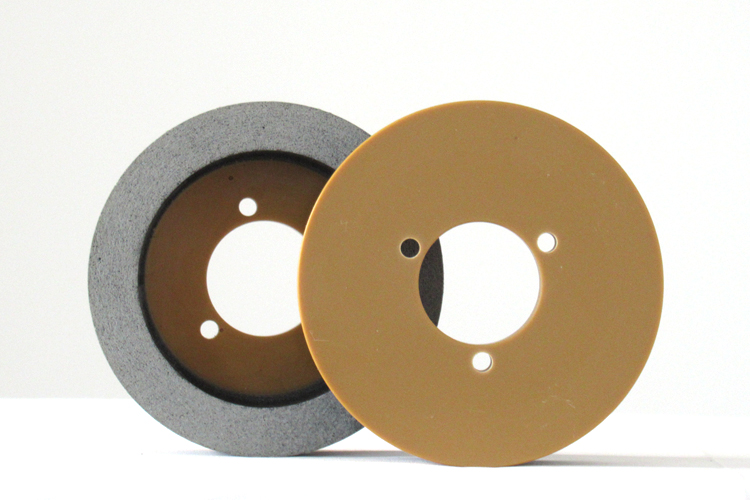

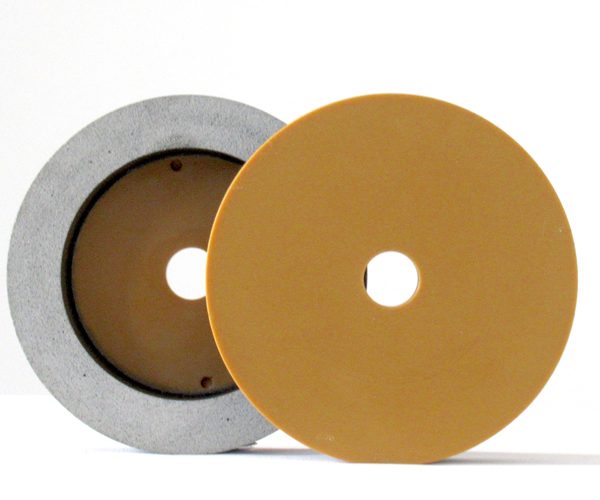

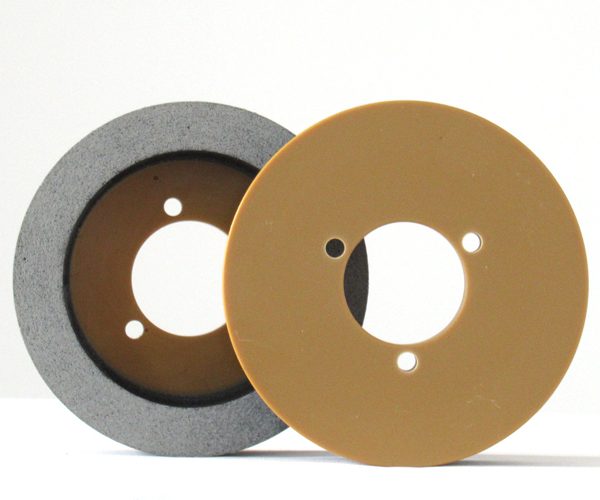

Features: Wheel manufactured in elastic rubber bond with rigid plate. The special materials used in the rigid plate prevent any mechanic and thermic problems which may occur during the polishing operation. These wheels are used in most of all machines in the market. This wheel will provide high performance in terms of quality and life span, also in heavy duty working conditions and without showing wheel marks on the glass edge, caused by an irregular release of the abrasive grits.

Available abrasive grits size:  40-46-60-80-100-120-180-220

Application: Utilized after the diamond wheels and for polishing operation. The type of machine, the number of spindles available and the type of diamond wheels, determine the polishing wheels sequence and their abrasive grit size.

Max. Working temperature: 50° c
Working pressure: from 1 bar, up to 2.5 bar
In feed speed: max 6 mts/ min.
Max peripheral speed: 3400 rpm
