Features: The wheel is manufactured in a rigid ceramic bond and its oscillation swing and  innovative structure assures the following benefits:

– It works at a higher feed speeds than normal standards
– Long lasting
– Removal of the diamond wheel marks in one step
– Removal of the burns when grinding the laminated/security glass
– Higher standard of polishing in less working time

Band height: 25 mm and 40 mm
Available abrasive grit size: mix unic

Application: Used after the diamond wheels. It is possible to work both monolithic and laminated/security glass. The removal of the diamond wheel marks allows the use of a second pass with the cerium wheels LX-4 to obtain a faster and superior polishing and a cost saving.

Suggested peripheral speed: 3000 – 3500rpm; 5000rpm max
In feed speed: +30% of standard parameters
Working pressure: below 40% of standard parameters

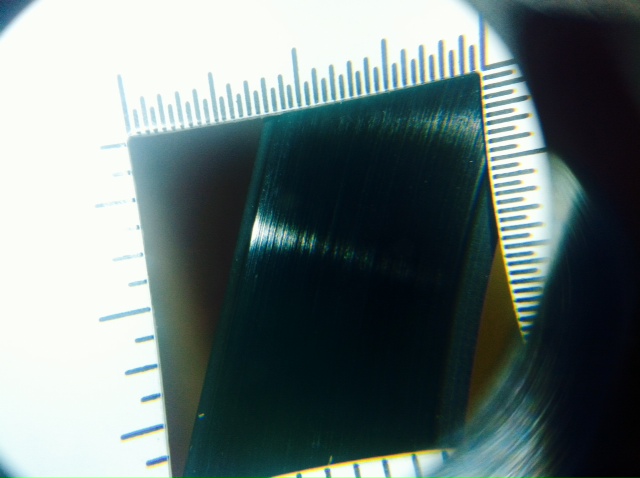

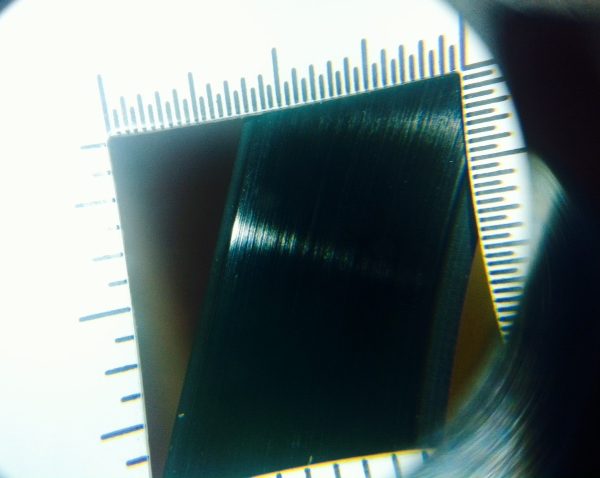

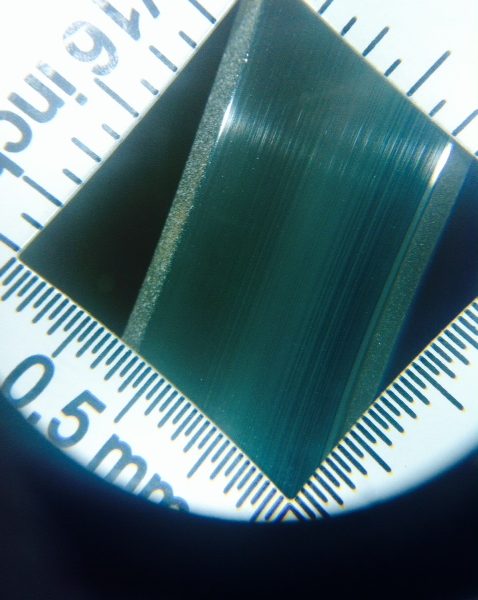

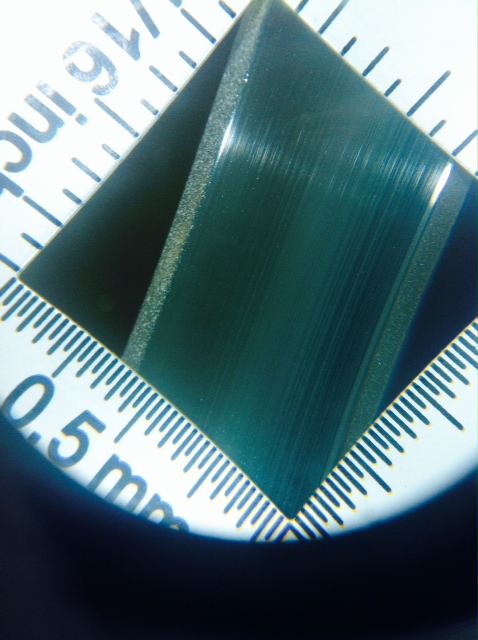

Note: The photos represents the final result, one without the UP-1 and the other with the use of UP-1 in 15mm thickness glass.
